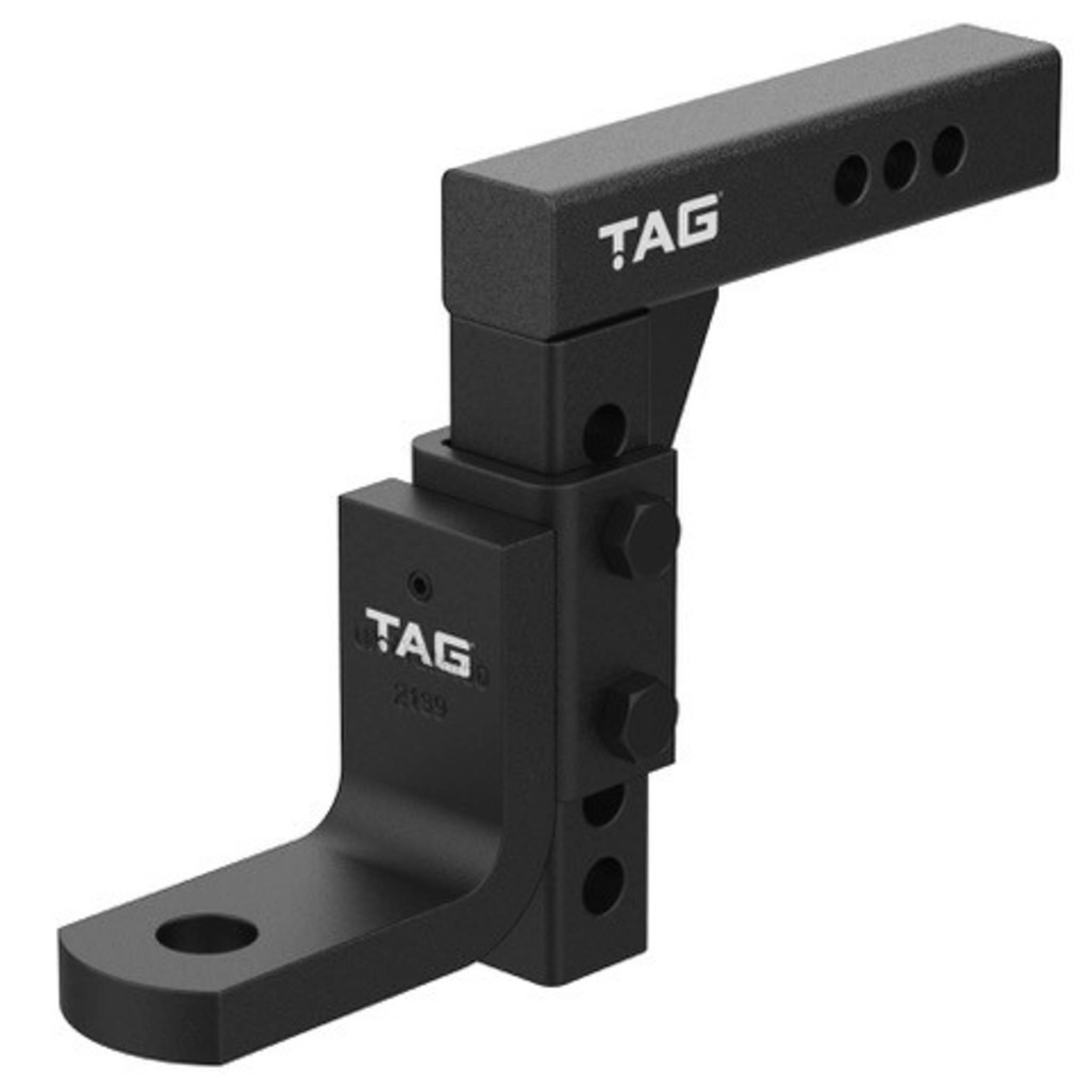

The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup. For full compatibility, the unit includes a reducer allowing the use of a 70mm or 50mm tow ball. Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping.
90° Separate Tongue Face with four adjustable positions.
Drop 115mm

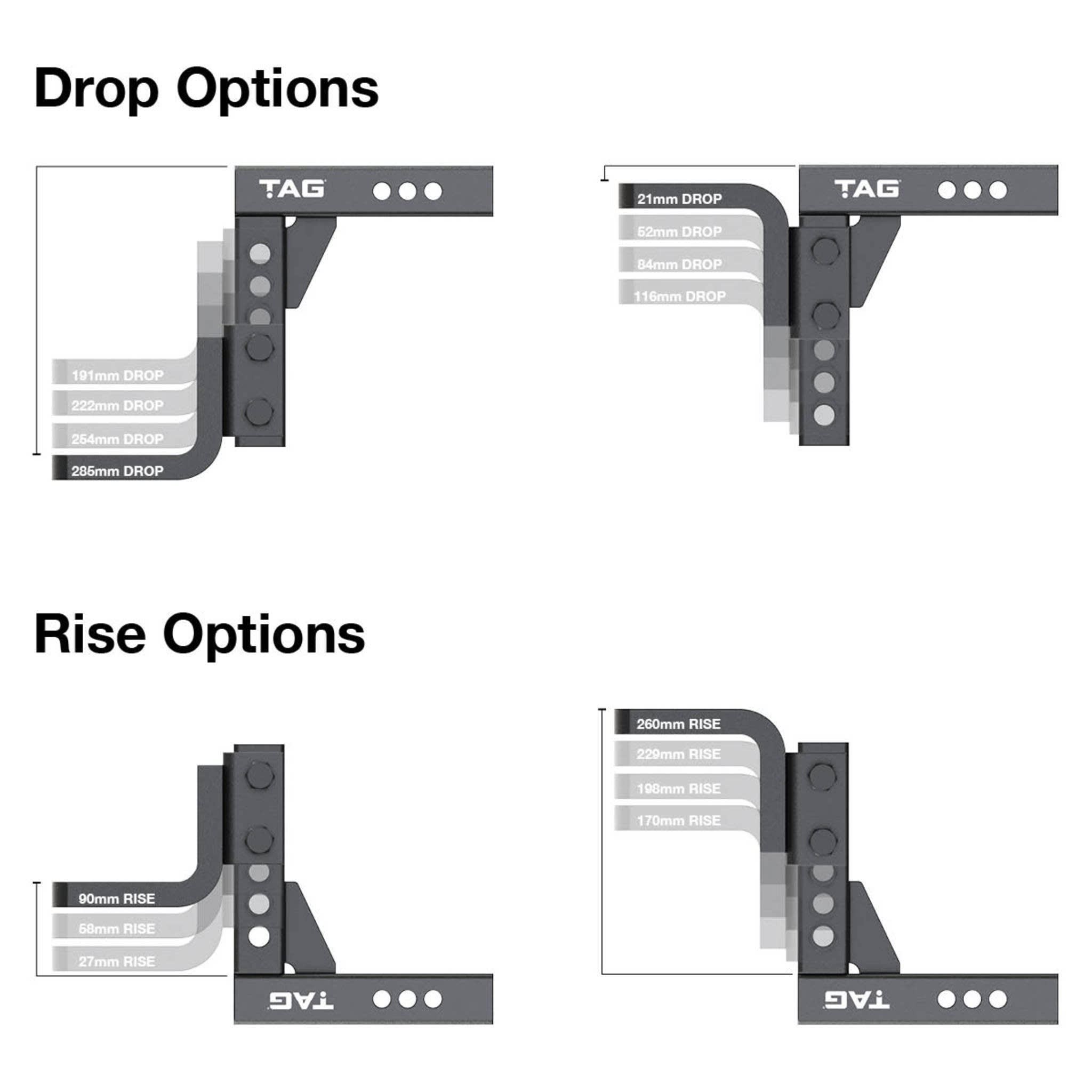

Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
Fits 70mm tow ball (or 50mm tow ball using included reducer)
Gross Trailer Weight 4500kg (70mm Tow Ball) / 3500kg (50mm Tow Ball)
Ball Weight 450kg (70mm Tow Ball) / 350kg (50mm Tow Ball)
Durable Powder Coated Finish
ADR 62/02 Compliant
-
TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.
Ensure you tighten Allen key grub screw before main attachment bolts.
Torque spec on bolts that attach head to shank is 280nm.
