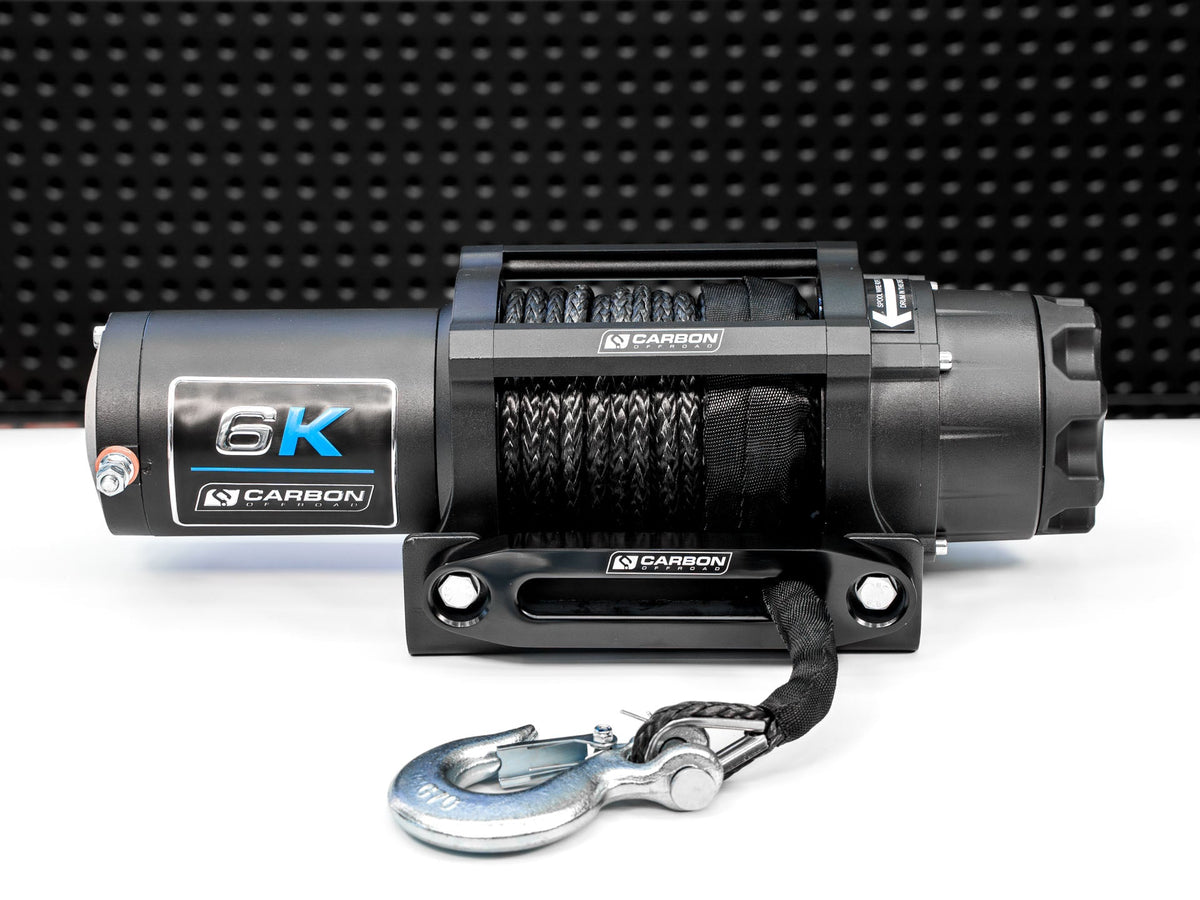

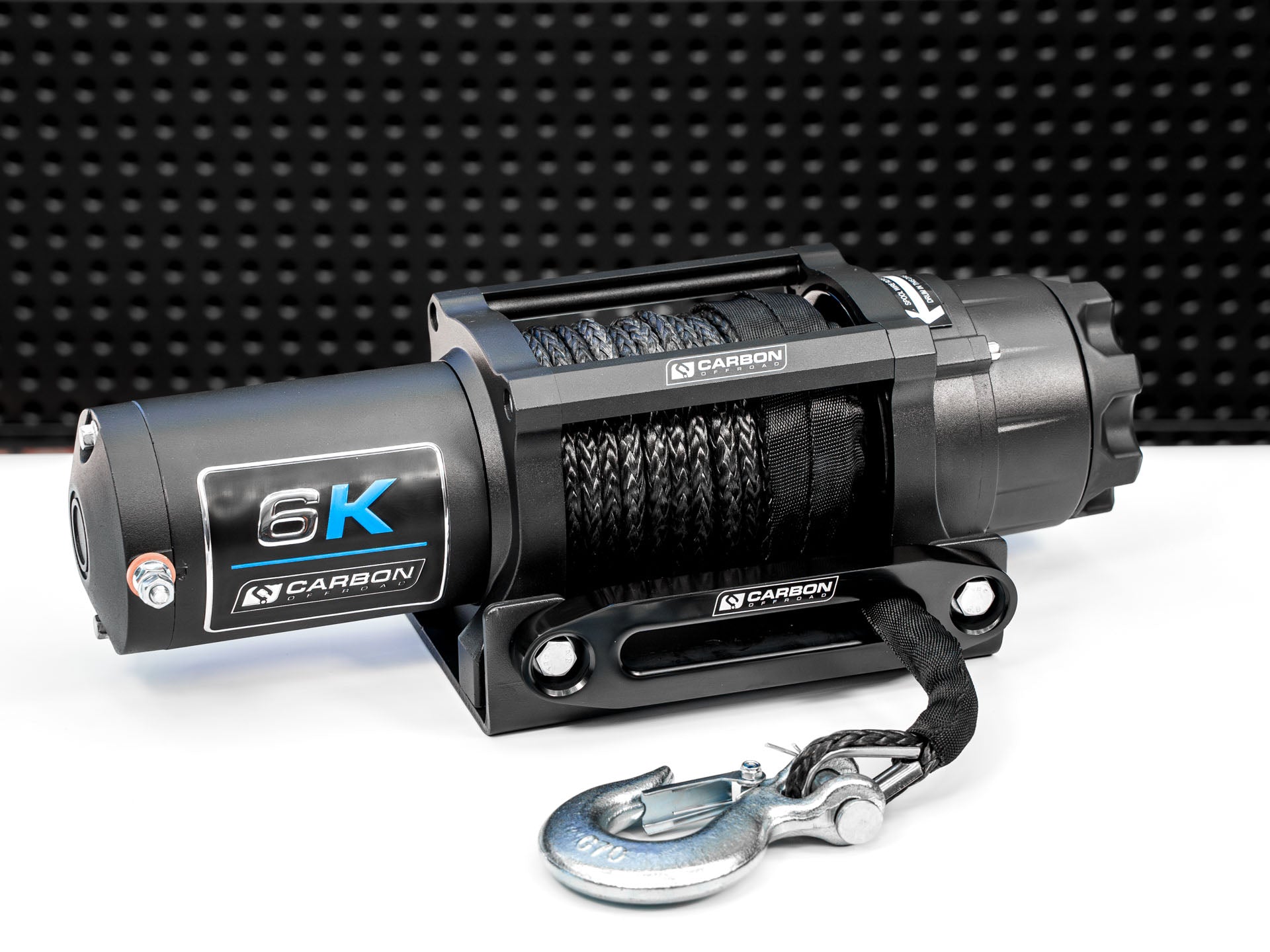

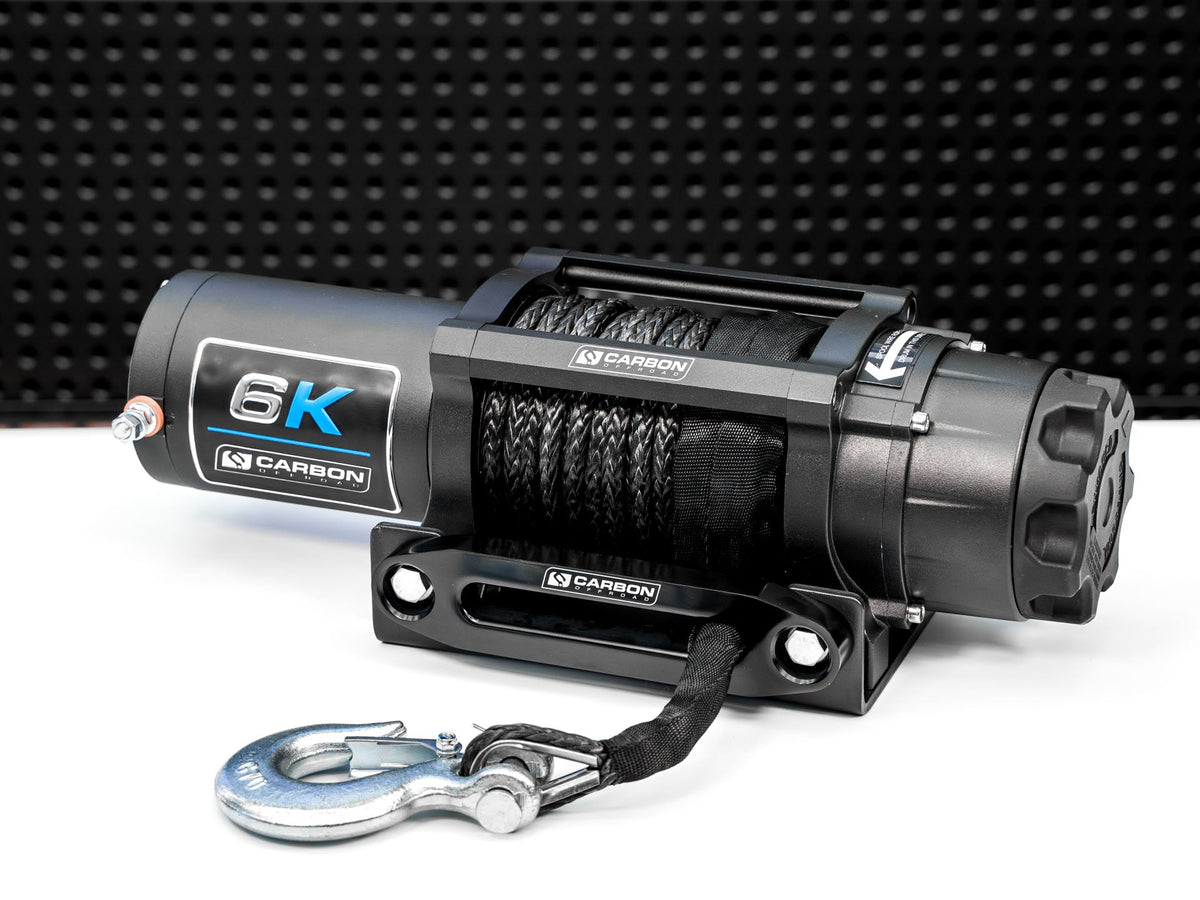

The Carbon Offroad 6000 lb ATV winch for ATVs, small 4wds, caravans, trailers, boats.

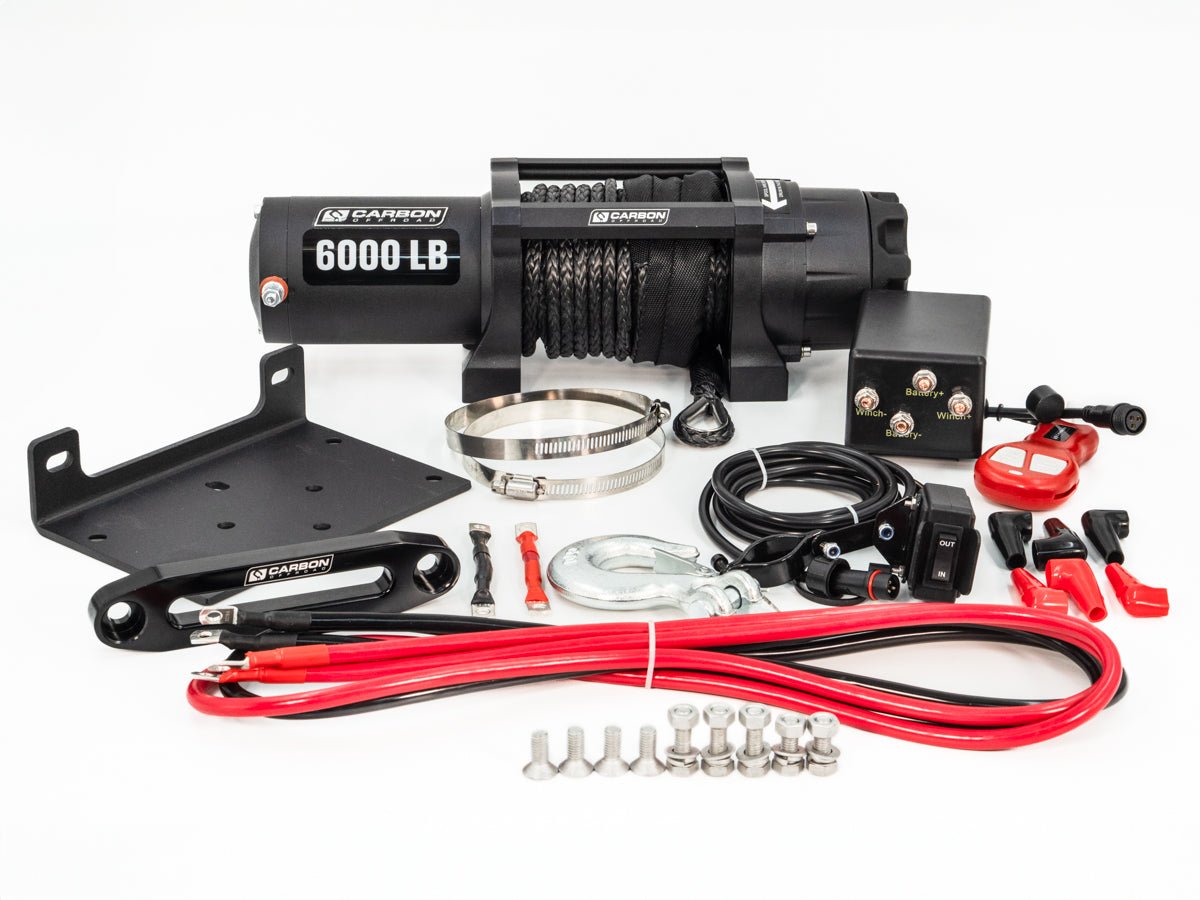

A small compact winch with integrated mounting plate makes mounting this winch is as simple as it can get to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
Features and Benefits
- Sealed motor and geartrain allows for flawless operations in extreme conditions
- Permanent magnet motor provides heavy duty torque for increased pulling power
- Cam action disengages gears for near silent free-spooling
- Mechanical and dynamic brake offers increased control and prevents rollback
Specification for CW-XD6
- Part number: CW-XD6
- Rated line pull: 6,000 lbs, (2721kg) single-line
- Motor: 24V DC 1.5HP motor
- Geartrain: 3 Stage Planetary
- Gear Ratio: 166:1
- Clutch: Free spooling, Cam activated
- Synthetic Rope: 42 ft (13m) x 1/4 in (6.0mm)
- Fairlead: Aluminium Hawse
- IP Rating: IP66 - Winch and Controls (Except remote switch)
- Winch Dimensions ( L x W x H ): 13.8 x 4.5 x 4.7in (350.5 x 115 x 120mm)
- Mounting Bolt Pattern: 3.0 x 6.59in (76mm x 167mm)
- Packing Dimensions( L x W x H ): 19.7 x 12.1 x 7.28in (500 x 307 x 185mm)
- Shipping Weight: 12.2kg
24V DC PERFORMANCE SPECS (first layer of drum)
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current @24V |
| 0 (0) |
20.5 (6.2) |
15 Amps |
| 1000 (454) |
16.1 (4.9) |
41 Amps |
| 2000 (907) |
12.8 (3.9) |
68 Amps |
| 3000 (1361) |
10.7 (3.3) |
84 Amps |
| 4000 (1814) |
8.6 (2.6) |
116 Amps |
| 6000 (2721) |
4.9 (1.5) |
160 Amps |
**The manual indicates that a circuit breaker is included, unfortunately this is not the case. We apologise for any confusion.**
