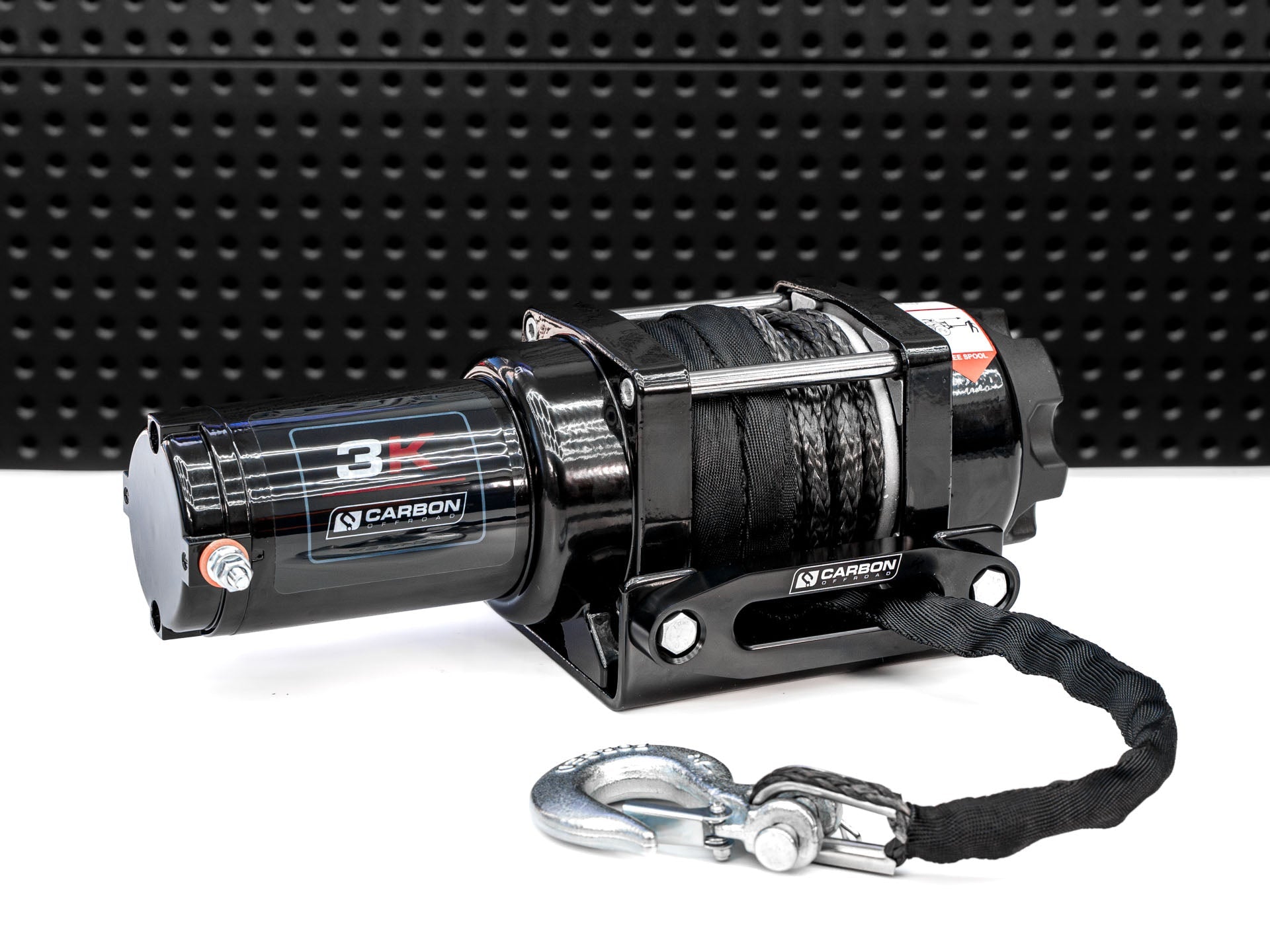

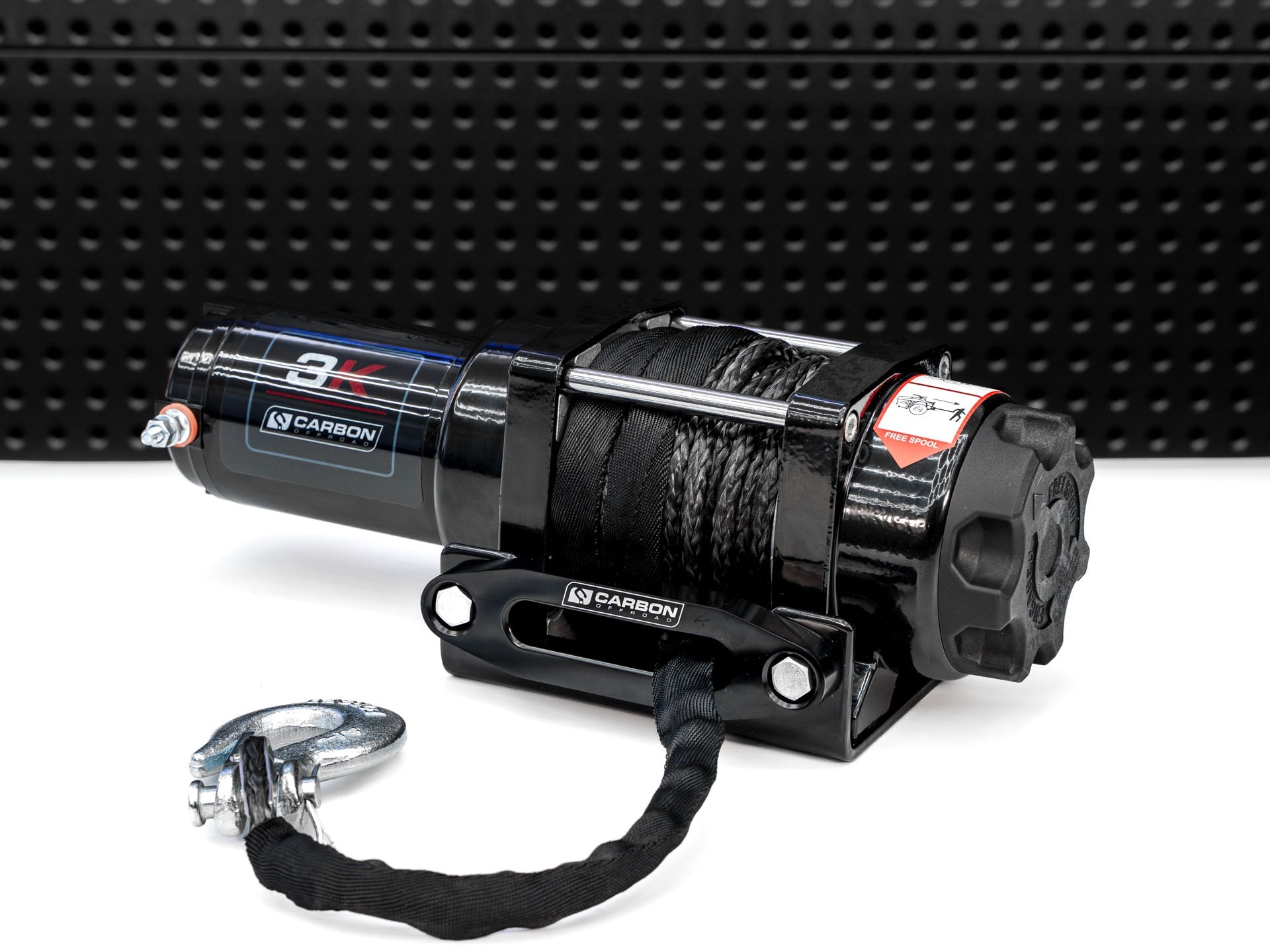

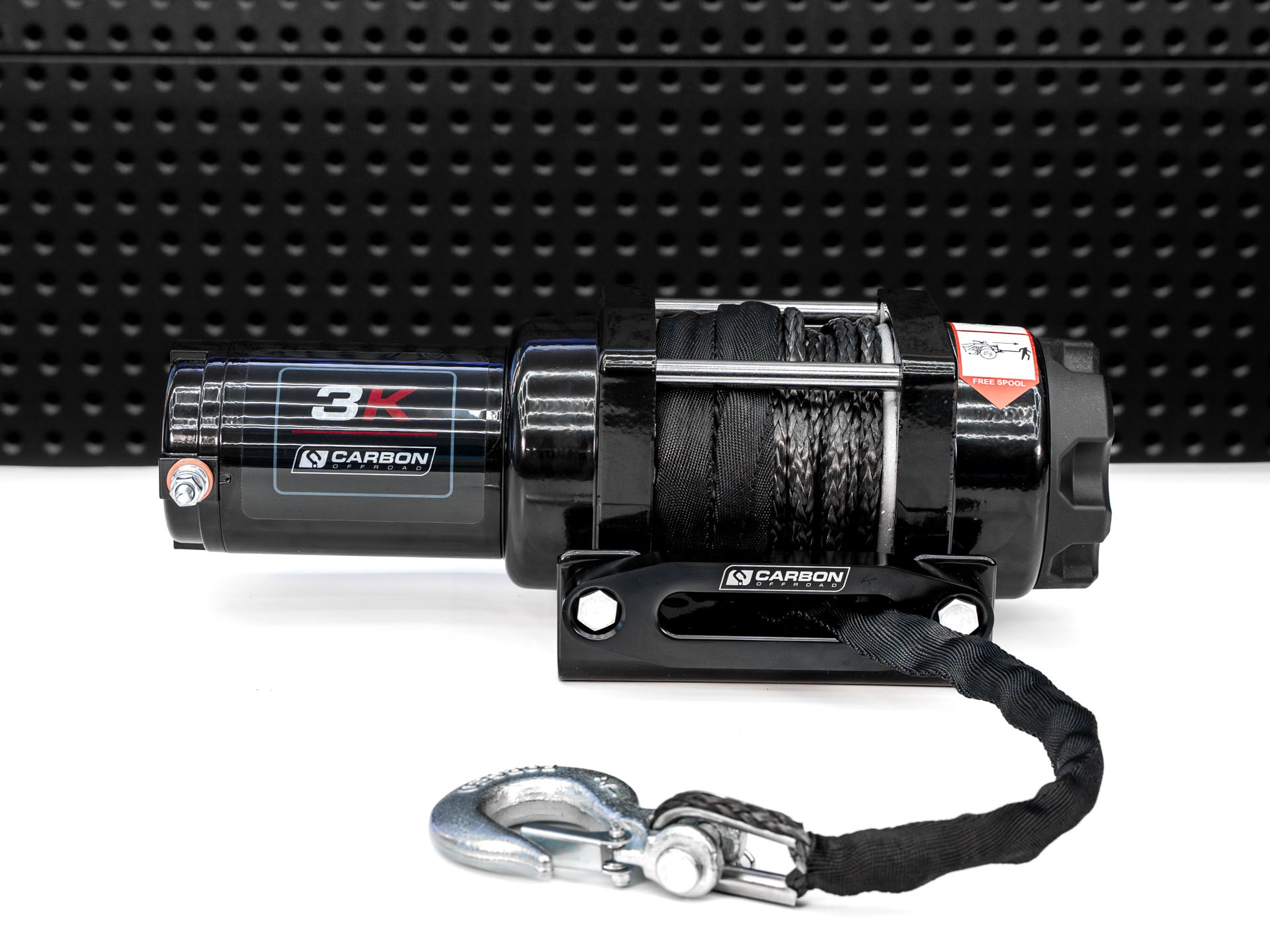

Carbon CW-3U 3000lb Light-Duty Trailer & Utility Winch
The Carbon CW-3U 3.0K 3000lb Winch delivers exceptional value, combining reliability and premium quality in a compact design. Built for light-duty applications with a 3,000 lb (1360 kg) capacity, this winch is engineered to handle a variety of towing and utility tasks effortlessly.
Designed with convenience in mind, it features both a handheld remote and a wireless remote control, allowing seamless operation of the power-in/power-out functions. Enhanced with tie rods for added stability, the CW-3U ensures durability and performance when you need it most.
Key Features & Specifications:
-
Rated Line Pull: 3,000 lbs (1360 kg), single-line
-
Motor: 12V DC, 1.5 HP Permanent Magnet Motor
-
Remote Controls:
- Wired remote with 12 ft (3.7m) lead
- Wireless remote included
-
Geartrain: Single-stage planetary
-
Gear Ratio: 153:1
-
Clutch (Free-Spooling): Split ring gear
-
Brake System: Self-locking gear train (rated load holding)
-
Drum Dimensions: 1.26” diameter × 2.87” length (32mm × 73mm)
-
Synthetic Rope: 43 ft, 3/16” diameter (13m, 4.8mm)
-
Fairlead: Roller
-
Mounting Bolt Pattern: 3.0” × 4.87” (76mm × 124mm)
-
Winch Dimensions: 12.2” × 5.0” × 5.0” (310mm × 127mm × 127mm)
-
Packing Dimensions: 15.7” × 7.9” × 8.7” (400mm × 200mm × 220mm)
-
Shipping Weight: 22 lbs (10 kg)
-
Warranty: 1 year
The Carbon CW-3U is an excellent choice for small trailers, ATVs, and light-duty applications, offering smooth operation, powerful performance, and reliability in a compact package.
Upgrade your towing experience with the Carbon CW-3U Winch today!
12V DC PERFORMANCE SPECS (first layer of drum) |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
0 |
20.4(6.2) |
10Amps |
1/3000(1360) |
1000(453) |
14.2(4.3) |
65Amps |
3/2725(1235) |
2000(907) |
10.9(3.3) |
96Amps |
3/2480(1125) |
3000(1360) |
7.7(2.4) |
